Container Terminal Port of Cologne - ABF GmbH

Success Story

Container Terminal Port of Cologne

Customer

Ports and Freight Traffic Cologne AG

Location

Germany

Implemented solutions

Automation

Container tracking and radio data transmission system at Stapelkai in the port of Cologne-Niehl

Five reach stackers and three container crane systems operate at the 200,000 m² container handling facility.
In addition to ship loading, these are also used for rail and truck loading.
ABF was commissioned as general contractor to equip the entire site with a WLAN data radio system and all vehicles and cranes with a position detection system.

Project scope

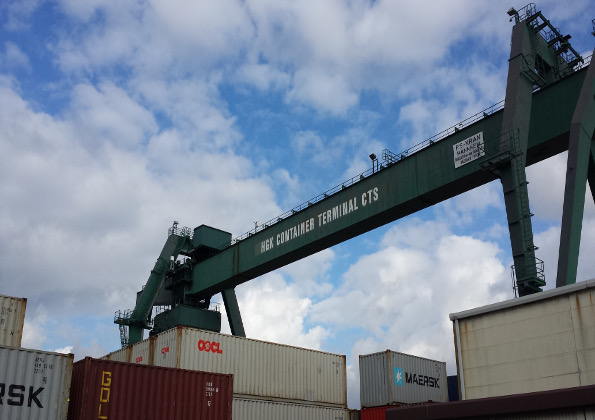

Position detection of the 3 container cranes using the robust ^DGPS/LPR® solution from our partner Symeo with an availability of >99%.
Absolute encoders were retrofitted to record the lifting heights on the cranes.
5 reachstackers were also equipped with DGPS and additional sensors to ensure a high level of positional reliability even in the shadowed areas.
Installation of automatic load change detection on all cranes and reach stackers.
Installation of a highly available and comprehensive (approx. 200,000 m²) WLAN data radio system in accordance with the IEEE 802.11 standard
Delivery of mobile terminal equipment for order processing in the container area
