Success Story

Collision warning system

Metals

Customer
voestalpine AG
Location
Austria
Implemented solutions
OneBase®MFT
Decentralized solution for collision warning between heavy-duty transporters and cranes for a slab yard in a large steelworks operation

ABF was awarded the contract as general contractor for the implementation of a collision warning system in the slab hot stacking area at the voestalpine Linz steelworks.
The aim was to warn crane and heavy vehicle drivers of possible collisions in a suitable manner, thereby avoiding possible accidents.
Another important aspect was the possibility of simple extension (without software changes) to other open areas and halls of the plant premises where the same or similar hazardous situations exist.
To meet these requirements, our intralogistics solution was introduced with the material tracking and evaluation modules.

Project scope
  • Collision warning system for 6 cranes and 12 slab transporters based on Symeo LPR®
  • Visual and acoustic warning in the vehicle and crane cabins
  • Detailed analysis of near collisions
  • History Player | Traceability of all movements and hazardous situations
  • Central online visualization for joint display of all vehicle and crane movements in real time

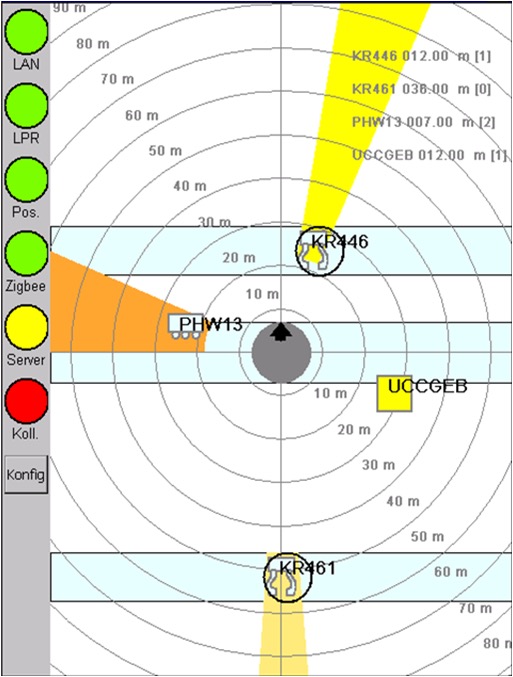

Kollisionswarnsystem 1

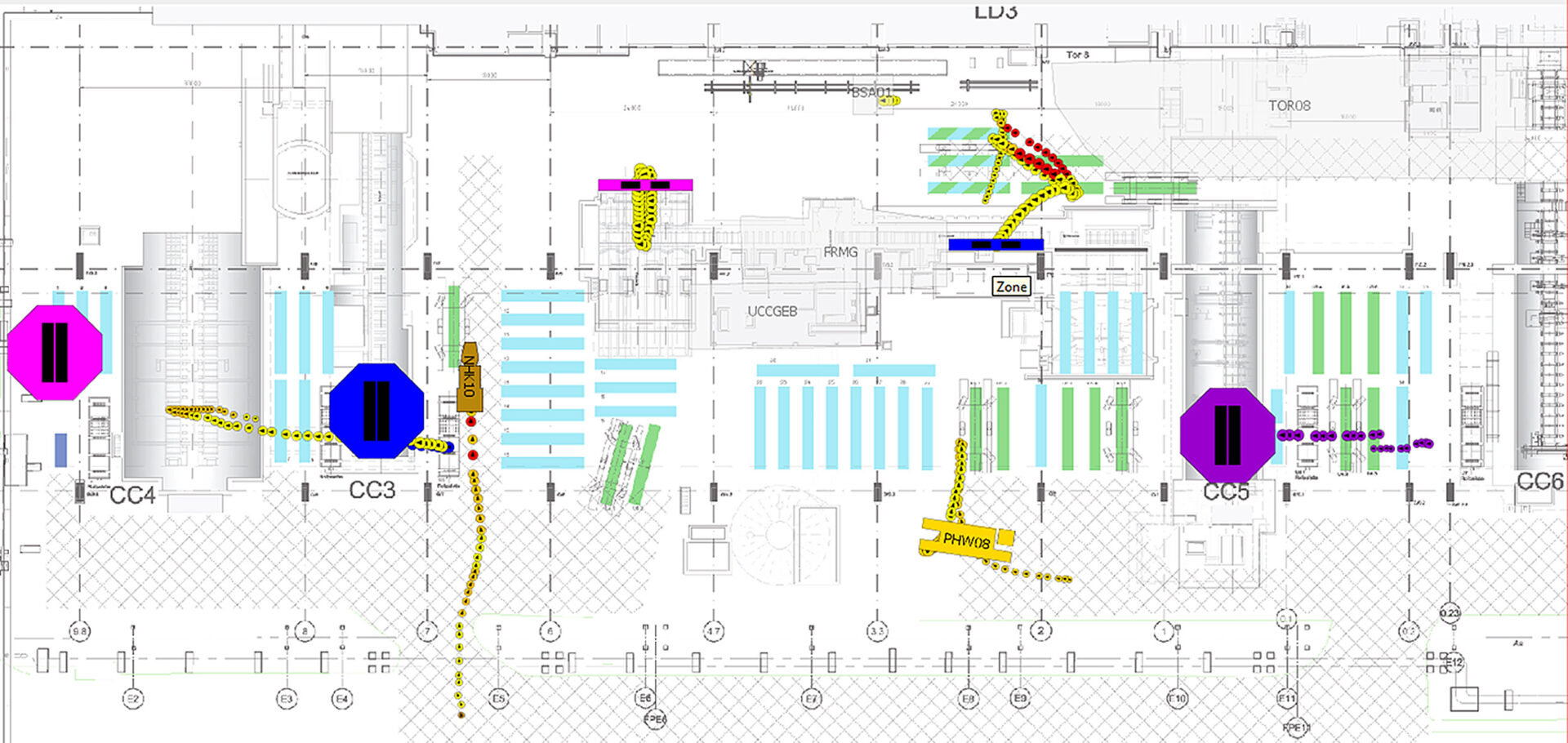

Kollisionswarnsystem 2

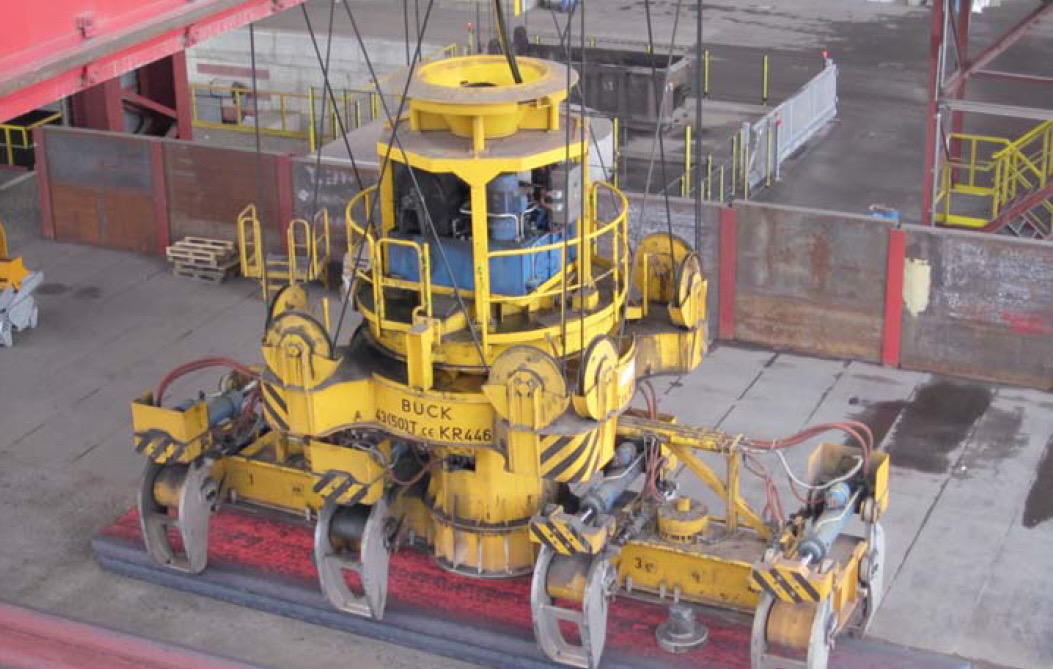

Kollisionswarnsystem 3
