Success Story

Containerterminal Hafen Köln

Kunde

Häfen und Güterverkehr Köln AG

Standort

Germany

Eingesetzte Lösungen

Automatisierung

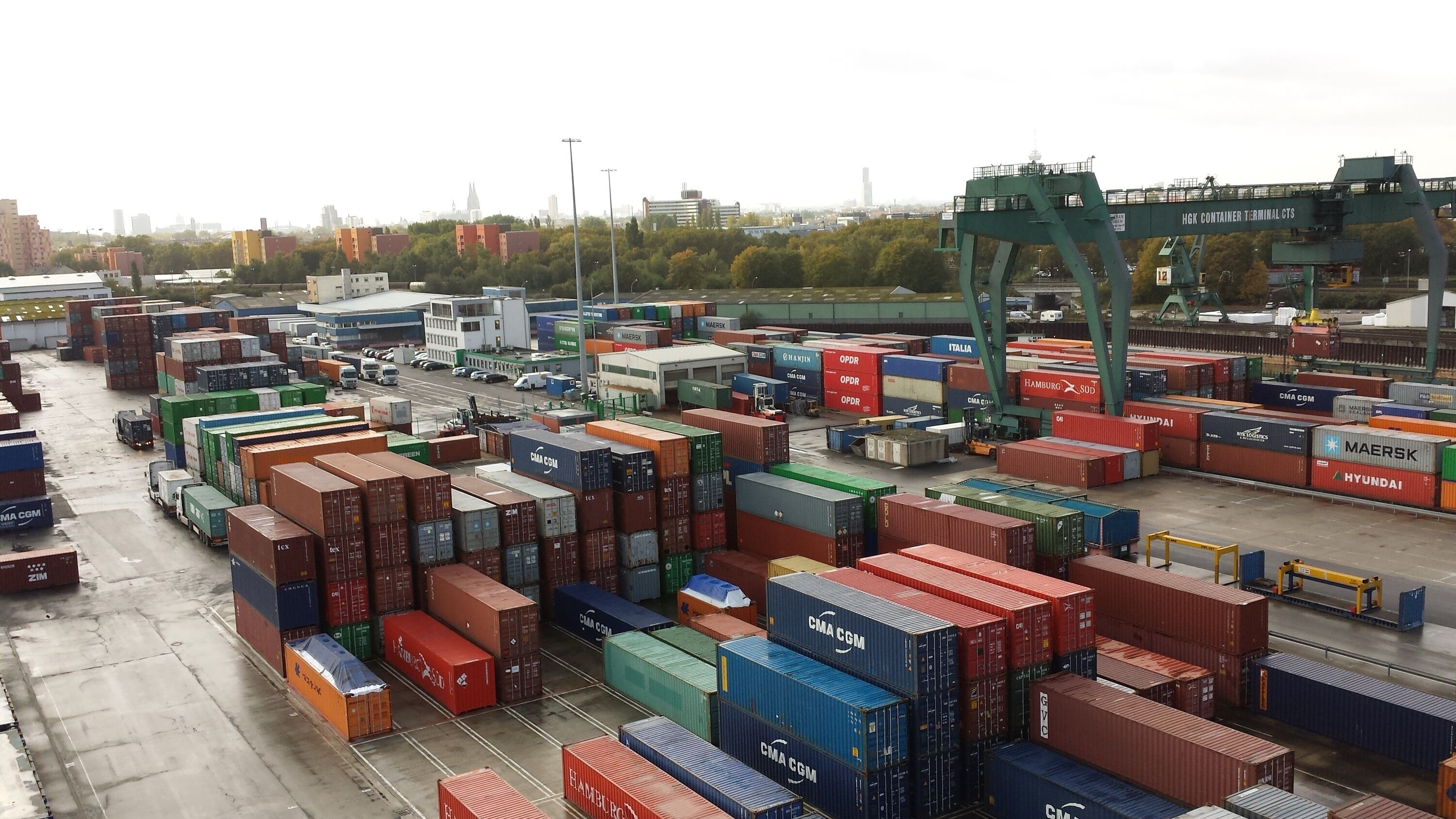

Containerverfolgung und Datenfunksystem am Stapelkai im Hafen Köln-Niehl

Auf der über 200.000 m² großen Anlage für Containerumschlag arbeiten 5 Reach-Stacker sowie 3 Containerkrananlagen. Diese dienen neben der Schiffsverladung auch der Eisenbahn- und LKW-Verladung. ABF wurde als Generalunternehmer beauftragt, das gesamte Areal mit einem WLAN-Datenfunksystem sowie alle Fahrzeuge und Kräne mit einem Positionserfassungssystem auszurüsten.

Projektumfang

Positionserfassung der 3 Containerkräne mittels der robuster DGPS/LPR^®-Lösung unseres Partners Symeo mit einer Verfügbarkeit von >99%. Zur Erfassung der Hubhöhen auf den Kränen wurden Absolutwertgeber nachgerüstet.
5 Reachstacker wurden ebenfalls mit DGPS ausgerüstet sowie mit Zusatzsensoren, damit auch in den abgeschatteten Bereichen eine hohe Zuverlässigkeit der Position gewährleistet werden kann.
Installation einer automatischen Lastwechselerkennung auf allen Kränen und Reachstackern.
Errichtung eines hochverfügbaren und flächendeckenden (ca. 200.000 m²) WLAN-Datenfunksystems nach Standard IEEE 802.11
Lieferung der mobilen Terminalendgeräte zur Auftragsbearbeitung im Containerbereich
